ID：QDMED-7-6002
Specifications：9000E
Details

(1). Technical features:

·  Scanning mode: 3.5MHz electronic scanning.
·  Probe: 3.5MHz Convex Array Probe (R=60).
·  Display mode: B, B/B, B/M, M.
·  Dead Zone≤5mm.
·  Detecting depth: ≥160mm, Display Depth: 200mm.
·  lateral Resolution: ≤3mm(for depth≤80mm).
≤4 (80mm＜depth≤130mm ).
·  axial Resolution:  ≤2mm(for depth≤80mm).
≤3 (80mm＜depth≤130mm ).
·  Positioning transverse :≤15%.
·  Positioning longitudinal:≤10%.
·  Grey scales: 256 .
·  Gains: step gains and total gain adjustment.
·  Focus: 17 steps dynamic focusing and sound penetrating lens, 4 kinds of focus.
·  Dynamic variable apertures.
·  Memory capacity: 512×512×8bit.
·  Measurement: 4 rulers for distance measurement.
1 ruler for area, circumference, heart rate and valve speed.
Obstetric checking software: for fetus weight, delivering date, pregnancy time, main medical statistics of fetus.
·  Patient information input: date and registration code display, full screen wording function.
·  8 frame co-relations and 8 Gamma calibrations for image processing.
(2). Configuration.

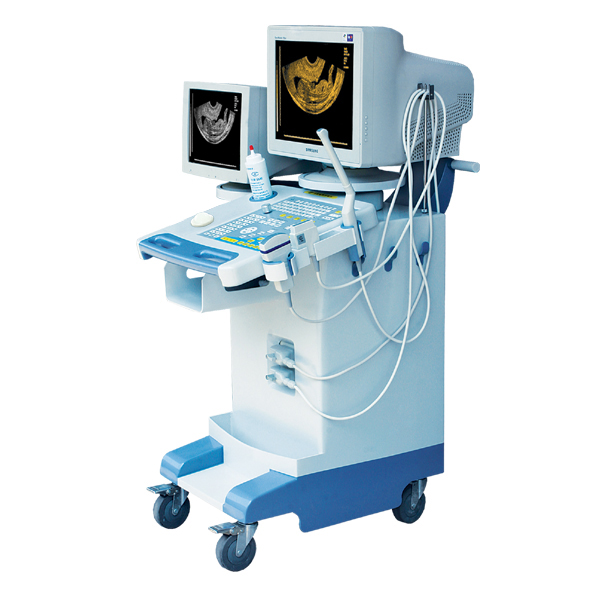

Main unit; 14 inch VGA monitor; 15 inch color monitor; 2.5/3.5/4.0/5.0MHz convex probe; 6.5/7.0MHz trans-vaginal probe; 7.5/8.0MHz linear probe.
Options: cine loop, thermal printer.
