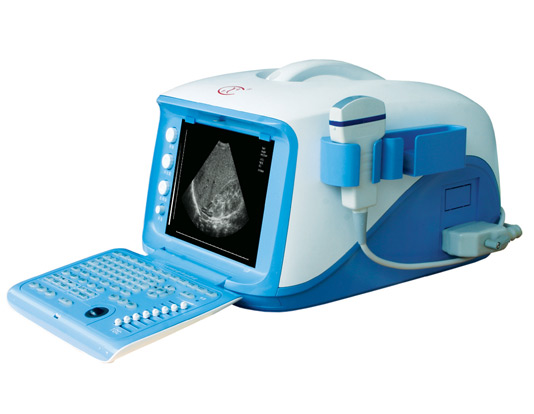

ID：QDMED-7-6001
Specifications：9000C

Details

(1). Technical features:
·  Scanning mode: 3.5MHz electronic scanning.
·  Probe: 3.5MHz Convex Array Probe (R=60).
·  Display mode: B, B/B, B/M, M
·  Dead Zone≤5mm.
·  Detecting depth: ≥160mm, Display Depth: 200mm.
·  lateral Resolution: ≤3mm(for depth≤80mm).
≤4 (80mm＜depth≤130mm ).
·  axial Resolution:  ≤2mm(for depth≤80mm).
≤3 (80mm＜depth≤130mm ).
·  Positioning transverse :≤15%.
·  Positioning longitudinal:≤10%.
·  Grey step: 256.
·  Gains: step gains and total gain adjustment.
·  Focus: 17 steps dynamic focusing and sound penetrating lens, 4 kinds of focus.
·  Dynamic variable apertures.
·  Memory capacity: 512×512×8bits.
·  Measurement: 4 rulers for distance, area, circumference, heart rate depth and valve speed.
Obstetric checking software: for BPD; FL; CRL; GS; HC; AC; fetus weight, delivering date, pregnancy time.
·  Patient information input: date and registration code display, full screen wording function.
·  8 frame co-relations and 8 Gamma calibrations for image processing.
·  STC adjustment with digital step control for any points in the image, which enable the doctor to get ideal image.
·  Image scales: ×1.0, ×1.2, ×1.5, ×2.0.
·  Image reverse: Left and right, up and down image reverse.
·  Image record: standard video output PAL.
·  Display: 36cm Black-White CRT.
·  Acoustic output parameters promulgate demand: See the adjoining page.
(2)  . Configuration:
Main unit; 2.5/3.5/4.0/5.0MHz convex probe; 10 inch VGA monitor.
Options: 6.5/7.0MHz trans-vaginal probe; 7.5/8.0MHz linear probe; cine loop；trolley; thermal printer.
